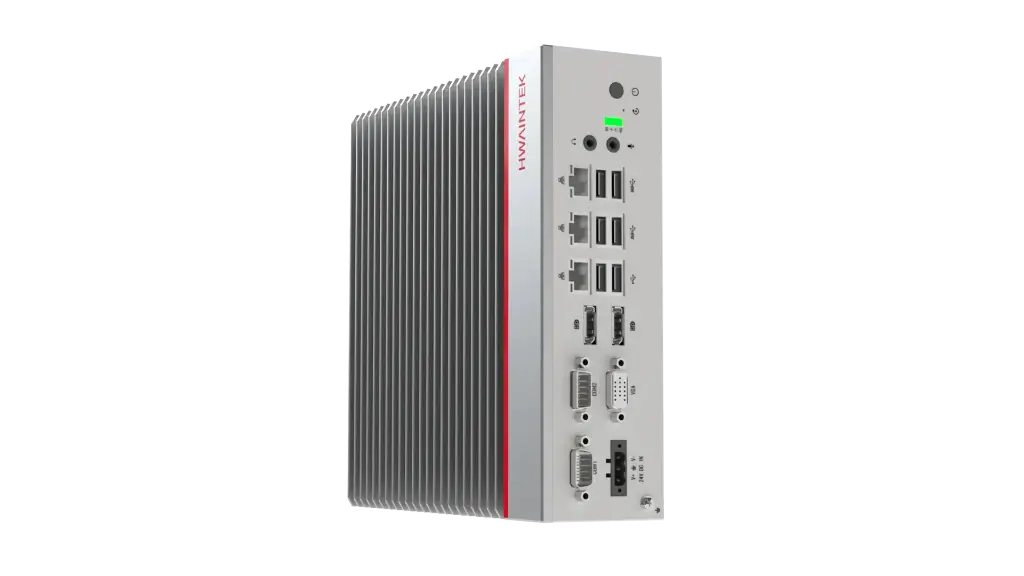

HC6100

https://www.visnal-imaging.com/web/image/product.template/63/image_1920?unique=0beff4a
  • Intel® 6th/7th/8th/9th Gen Processors with LGA1151
  • Support for 2 independent displays via dual DP and one VGA port
  • with resolution pu to 4K UHD
  • 2 x DDR4 SO-DIMM sockets support up to 32GB memory
  • 3 x Gigabit LAN(2 x Intel i210-AT and 1 x Intel i219-LM)
  • 1 x RS-485, 5 x RS-232
  • Compact and fanless design

4,349.00 zł 4349.0 PLN 4,349.00 zł Tax Excluded

Not Available For Sale

  • CPU
  • RAM
  • SSD
  • SSD

This combination does not exist.

This content will be shared across all product pages.

Contact Us

Terms and Conditions
Leadtime: Contact us  [email protected]

Product Parameters

System Parameters CPU Intel® Core™ i5-6400 / i5-8400 / i5-9400 / i7-6700 / i7-8700 / i7-9700
Chipset H110
BIOS AMI 64Mbit UEFI
Memory 2x SODIMM DDR4, MAX 32GB
Storage 1x M.2 M-Key 2280, SATA 3.0; 1x SATA, support 2.5" SSD/HDD
External I/O Display 2x DP, MAX 4096 × 2304 @ 60Hz
1x VGA, MAX 1920 × 1080 @ 60Hz
DP + DP / DP + VGA dual dedicated graphics
Ethernet 1x LAN, Intel® I219LM
2x LAN, Intel® I210AT
COM 1x RS-232; 1x RS-485
USB 4x USB 3.0; 2x USB 2.0
Audio 1x Line-out, 1x Mic-in, Realtek ALC662
Other REMOTE -
RESET Support resetting BIOS by long-pressing during shutdown
Internal Expansion USB -
miniPCIe 1x miniPCIe, support WLAN/WWAN
SIM 1x USIM, support 3G/4G
PCIe -
PCI -
System OS Windows 10 IoT LTSC, Linux
Power supply Input voltage 24V DC IN, 3PIN Phoenix
Power consumption MAX 120W
Mechanical parameters Installation Wall-mounted installation

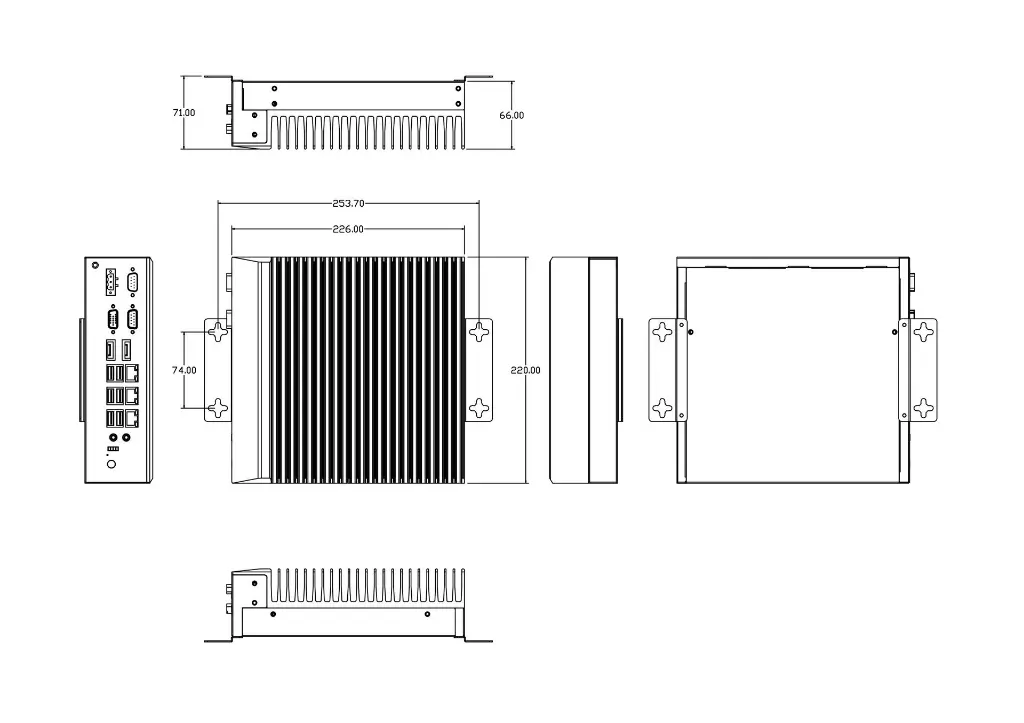

Dimensions 220 × 226 × 66 mm
Net weight 3.0 kg
Environmental Parameters Operating temperature 0 ~ 60°C, with an airflow of 0.7 m/s
Storage temperature -40°C ~ 85°C, 60°C @ 95% (non-condensing)
Relative humidity 10 ~ 95% @ 40°C (non-condensing)
EMC CE, FCC Class B
