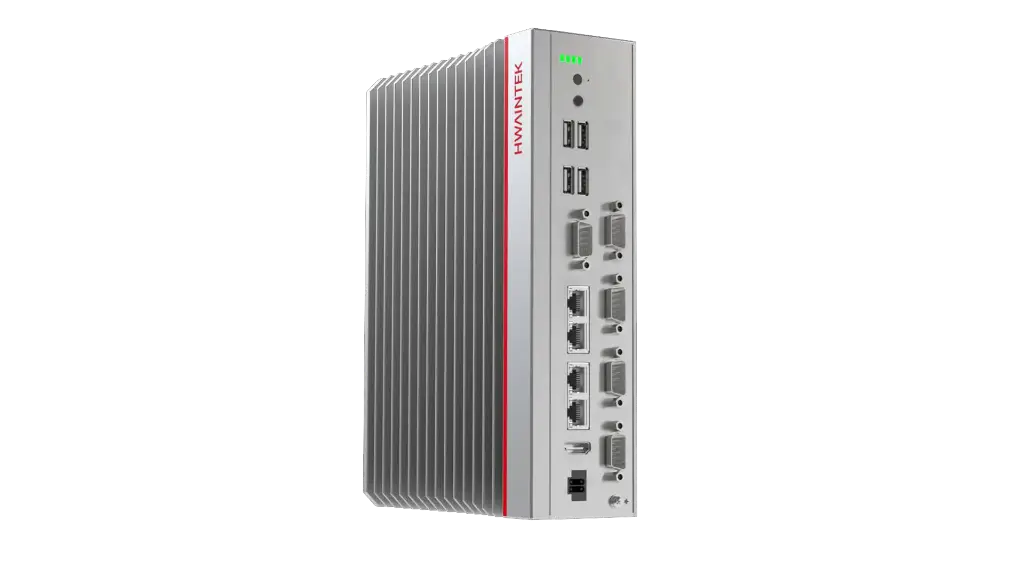

HM512

https://www.visnal-imaging.com/web/image/product.template/62/image_1920?unique=67d1dcb
  • Support Intel Tiger Lake-U UP3
  • Max. 64GB DDR4 3200MT/s SO-DIMM RAM
  • Intel® Iris® Xe graphics, up to 96 graphics execution units(EU)
  • 4x GbE LAN（4 x Intel i210）
  • 3x RS-232，2x RS-485
  • Compact and fanless design

4,849.00 zł 4849.0 PLN 4,849.00 zł Tax Excluded

Not Available For Sale

  • CPU
  • RAM
  • SSD
  • SSD

This combination does not exist.

This content will be shared across all product pages.

Contact Us

Terms and Conditions
Leadtime: Contact us  [email protected]

Product Parameters

System Parameters CPU Tiger Lake UP3 (i3-1115G4 / i5-1135G7 / i7-1165G7)
Chipset Intel® SoC Integrated
BIOS AMI 128Mbit SPI Flash
Memory 2x SODIMM DDR4, MAX 64GB
Storage 1x M.2 M/B-Key 2280, SATA 3.0; 1x SATA
External I/O Display 1x HDMI, MAX 4096 × 2304 @ 60Hz
Ethernet 4x LAN, Intel® I210-AT
COM 3x RS-232, 2x RS-485
USB 4x USB 3.0
Audio 1x Line out / Mic in
Other REMOTE Support remote switching, integrated in the power supply part
RESET Support BIOS reset by long-pressing the power button when shutdown
SIM 1x Nano SIM
M.2 1x M.2 E-Key 2230, support Wi-Fi
1x M.2 B-Key 3052, support 4G/5G
USB 2.0 2x USB 2.0, header
System OS Windows 10 IoT LTSC, Linux
Power supply Input voltage 24V DC IN, 4PIN Phoenix
Power MAX 120W
Mechanical parameters Installation Wall-mounted installation (rail optional)

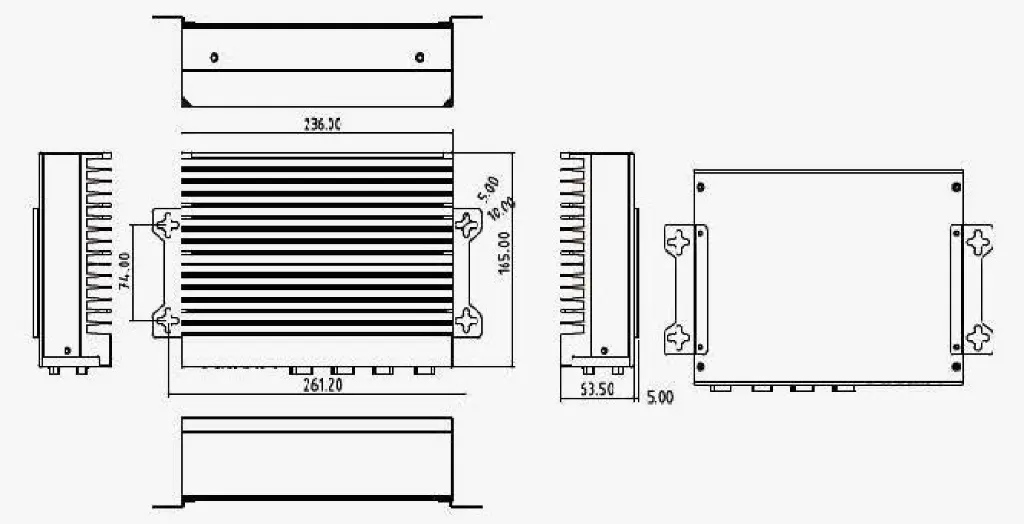

Dimensions 236 × 165 × 63.5 mm (LxWxH)
Net weight 2.2 kg
Environmental Parameters Operating temperature 0 ~ 60°C, with an air flow of 0.7 meters per second
Storage temperature -40°C ~ 85°C, 60°C @ 95% (non-condensing)
Relative humidity 10 ~ 95% @ 40°C (non-condensing)
EMC CE, FCC Class B
