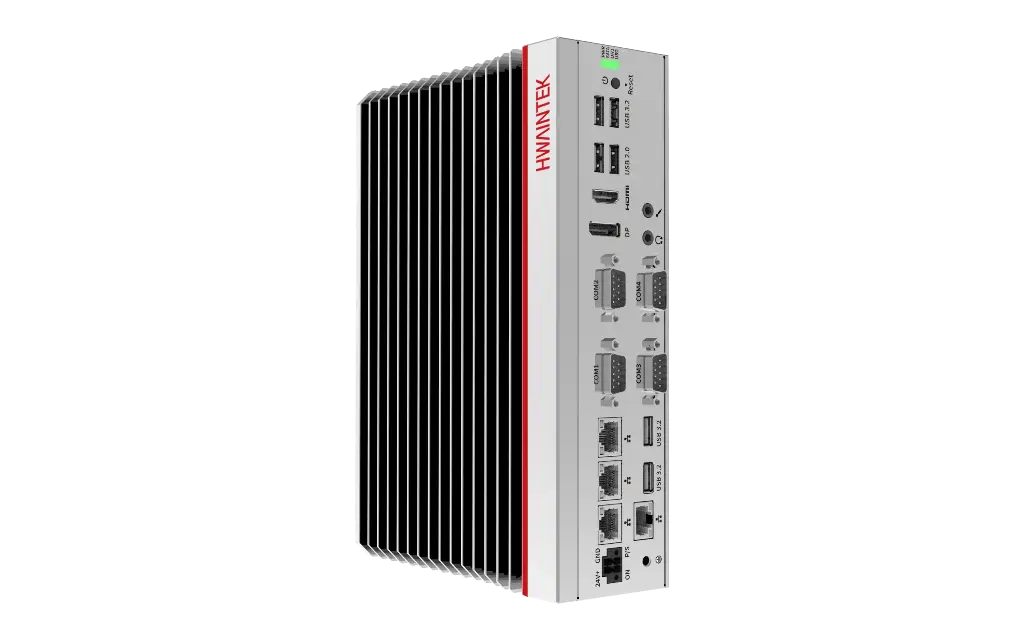

HM511D

https://www.visnal-imaging.com/web/image/product.template/61/image_1920?unique=3528ec2
  • Support Intel Tiger Lake-U I5 1135G7
  • Max. 64GB DDR4 3200MT/s SO-DIMM RAM
  • 1 x DP, 1 x HDMI, support dual independent displays 4x
  • LAN (4 x Intel i210)
  • 2x RS-232/485, 2x RS-232
  • 4x USB 3.2, 2x USB 2.0
  • Support UPS, 4G or 5G, Wi-Fi expansion

3,999.00 zł 3999.0 PLN 3,999.00 zł Tax Excluded

Not Available For Sale

  • CPU
  • RAM
  • SSD

This combination does not exist.

This content will be shared across all product pages.

CPU: I5-1135G7

Terms and Conditions
Leadtime: Contact us  [email protected]

Product Parameters

System Parameters CPU Tiger Lake UP3 i5-1135G7
Chipset Intel® SoC Integrated
BIOS Insyde BIOS
Memory 2x SODIMM DDR4, MAX 64GB
Storage 1x M.2 M-Key 2242/2280 slot, support PCIe x2 & SATA mode
External I/O Display 1x DP, MAX 4096 × 2160 @ 60Hz
1x HDMI, MAX 4096 × 2160 @ 60Hz
Ethernet 4x LAN, Intel® I210
COM 2x RS-232/485; 2x RS-232
USB 4x USB 3.2; 2x USB 2.0
Audio 1x Mic in; 1x Headphone
Other REMOTE Support remote switching, integrated in the power supply part
RESET Support one-key system restoration by long-pressing
M.2 1x M.2 E-Key 2230, support Wi-Fi
1x M.2 B-Key 3052, support 4G/5G
SIM 1x Nano SIM
TPM Support, reserved
System OS Windows 10 IoT LTSC, Linux
Power supply Input voltage 24V DC IN, 4PIN Phoenix
Power MAX 120W
Mechanical parameters Installation Wall-mounted installation (rail optional)

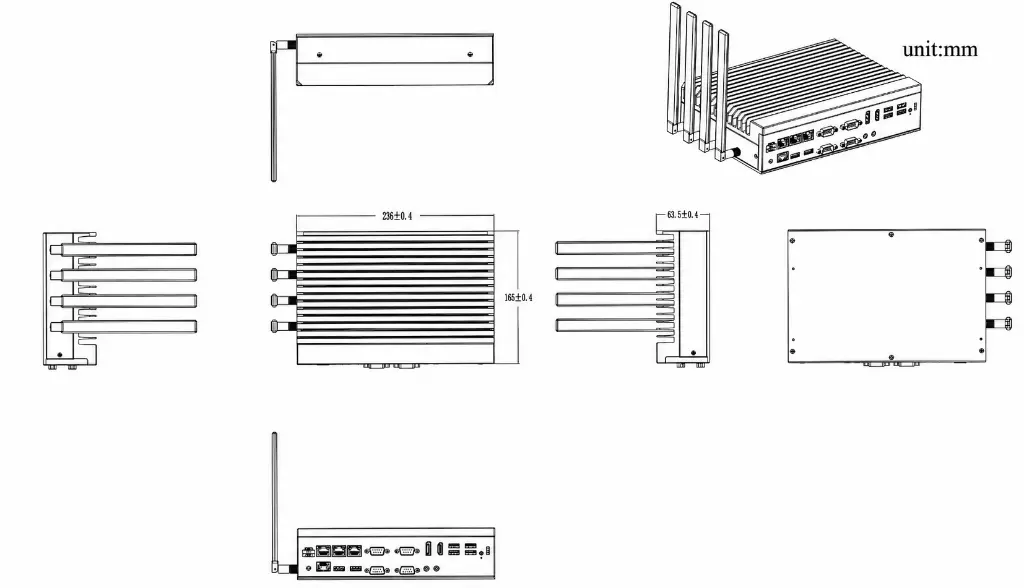

Dimensions 236 × 165 × 63.5 mm (LxWxH)
Net weight 2.2 kg
Environmental parameters Operating temperature 0 ~ 50°C, with an air flow of 0.7 meters per second
Storage temperature -25°C ~ 70°C, 60°C @ 95% (non-condensing)
Relative humidity 10 ~ 95% @ 40°C (non-condensing)
EMC CE, FCC Class B
