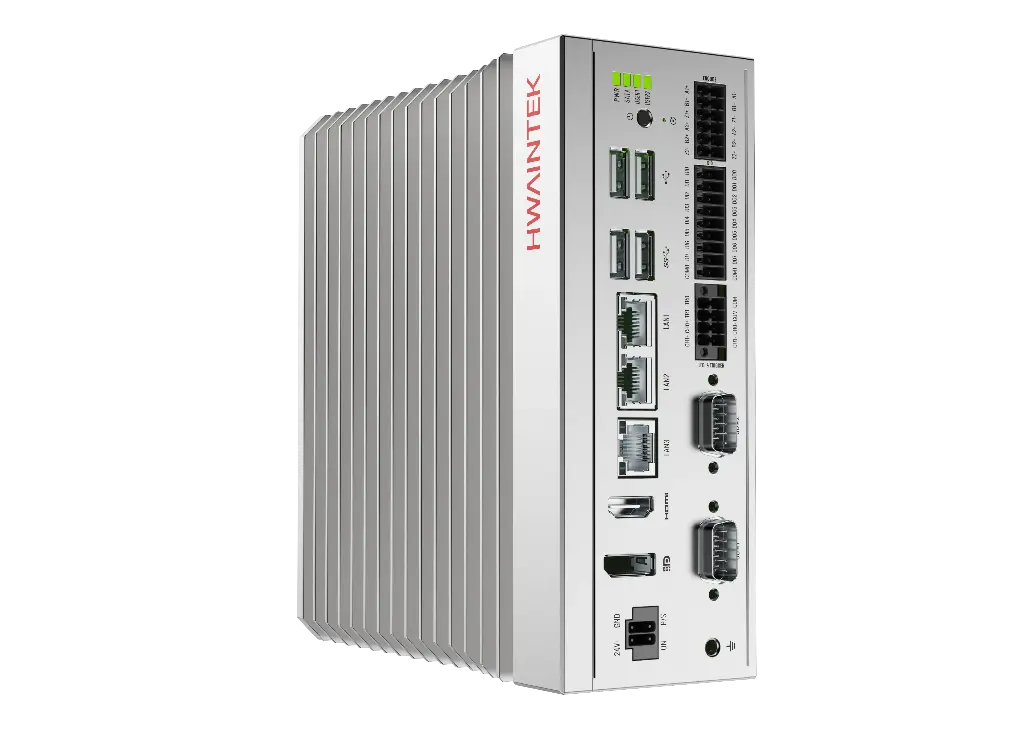

HM313

https://www.visnal-imaging.com/web/image/product.template/58/image_1920?unique=ddb97a2
  • Intel Alder Lake-N series N97/I3-N305
  • Single-channel DDR5-4800, with a maximum memory capacity of 16GB
  • 3x LAN (2x Intel i210；1x Realtek RTL8111H) 1x RS-232/422/485；1x RS-232
  • 3x USB 3.0；1x USB 2.0
  • 8 DI，8DO；2encoders
  • Support expansion of 4G/5G and Wi-Fi 6 wireless communication modules
  • DC9-36V, support optional UPS module expansion

3,649.00 zł 3649.0 PLN 3,649.00 zł Tax Excluded

Not Available For Sale

  • CPU
  • RAM
  • SSD

This combination does not exist.

This content will be shared across all product pages.

Contact Us

Terms and Conditions
Leadtime: Contact us  [email protected]

Product Parameters

System Parameters CPU Intel® Alder Lake-N series N97 / i3-N305
Chipsets Intel® SoC Integrated
BIOS AMI 128Mbit SPI Flash
Memory 1x SODIMM DDR5, MAX 16GB
Storage 1x M.2 M-Key 2280, SATA 3.0
External I/O Display 1x DP, MAX 4096 × 2304 @ 60Hz
1x HDMI, MAX 4K/2K @ 60Hz
LAN 2x LAN, Intel® i210 GbE
1x LAN, Realtek RTL8111H GbE
COM 1x RS-232/422/485, 1x RS-232
USB 3x USB 3.0; 1x USB 2.0
DIO 8x DI; 8x DO
Light Source 2x Light Source & Trigger
Other REMOTE Support remote switching, integrated in the power supply part
RESET Support BIOS reset by long-pressing the power button when shutdown
Internal Expansion USB 1x Internal USB 2.0 (pin), 1x USB 2.0 Type-A
M.2 1x M.2 3042/3052, support 4G/5G; 1x M.2 2230, support Wi-Fi
SIM 1x Nano SIM
System OS Windows 10 IoT LTSC, Linux
Power supply Input voltage 24V DC IN, 4PIN Phoenix
Power MAX 60W
Mechanical parameters Installation Wall-mounted installation (rail optional)

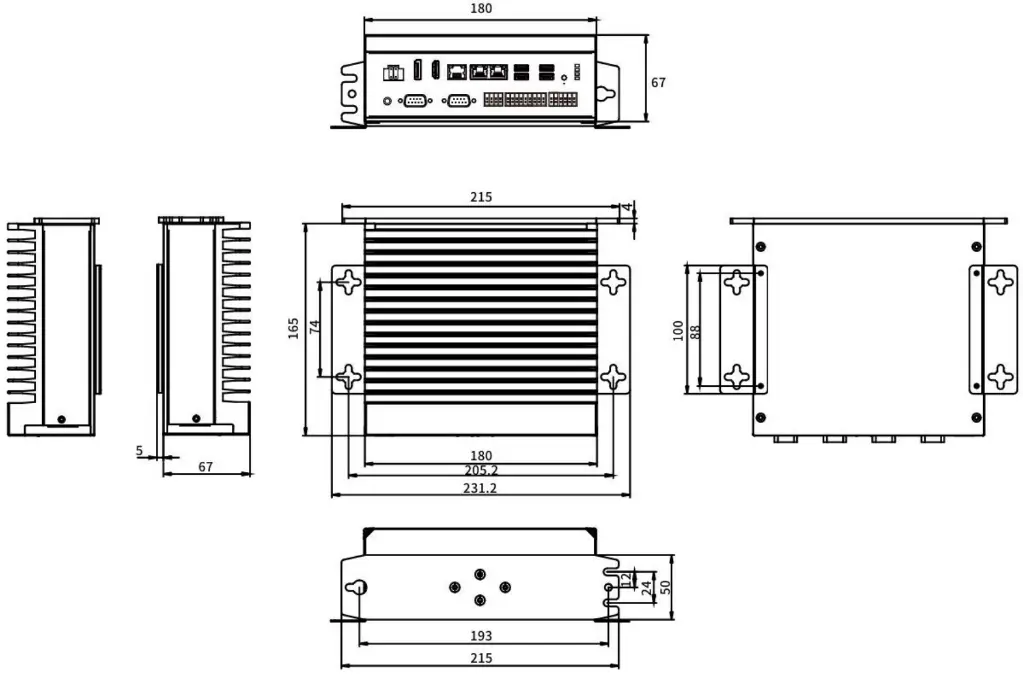

Dimensions 180 × 165 × 67 mm
Net weight 2 kg
Environmental parameters Operating temperature 0 ~ 60°C, with an air flow of 0.7 meters per second
Storage temperature -40°C ~ 85°C, 60°C @ 95% (non-condensing)
Relative humidity 10 ~ 95% @ 40°C (non-condensing)
EMC CE, FCC Class B
