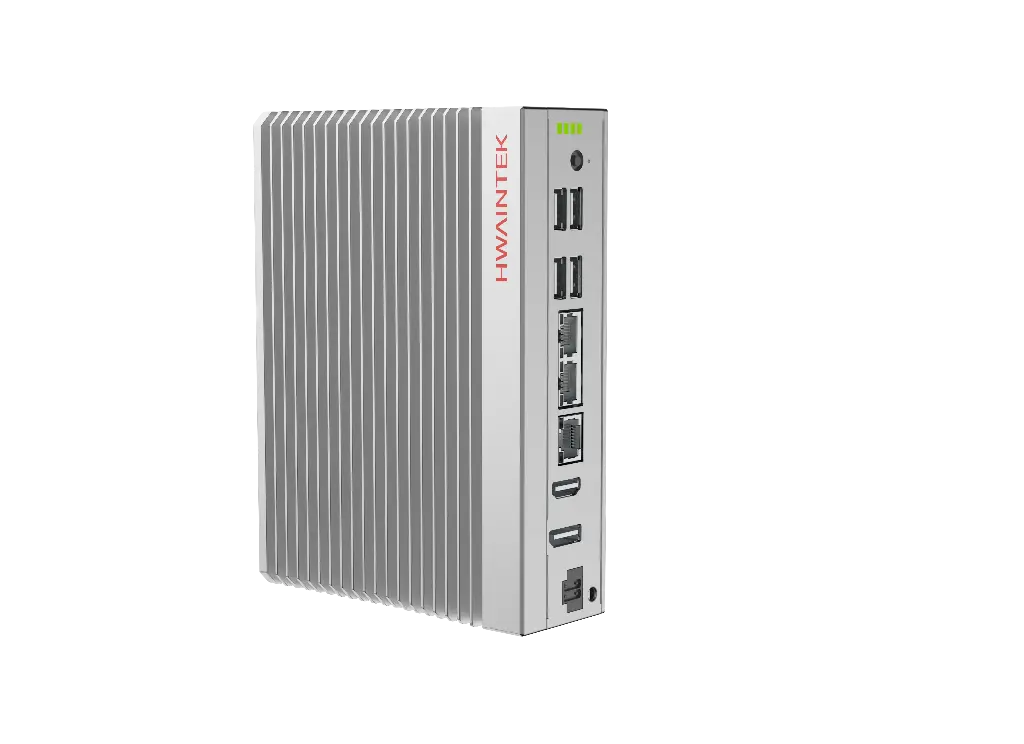

HG31

https://www.visnal-imaging.com/web/image/product.template/56/image_1920?unique=102e03f
  • Intel® Elkhart Lake platform J6412/N97
  • Dual channel DDR4-3200，up to 32GB 2
  • independent display via DP and HDMI 3x
  • LAN (2x Intel i210-AT, 1x Intel i226-V) 1x
  • RS-232/422/485, 1x RS-232
  • 2x USB 3.0, 2x USB 2.0
  • Support UPS, 4G or 5G, Wi-Fi expansion

2,649.00 zł 2649.0 PLN 2,649.00 zł Tax Excluded

Not Available For Sale

  • CPU
  • RAM
  • SSD

This combination does not exist.

This content will be shared across all product pages.

Contact Us

Terms and Conditions
Leadtime: Contact us  [email protected]

Product Parameters

System parameters CPU Intel® Celeron® J6412/N97
chipset Intel® SoC Integrated
BIOS AMI 128Mbit UEFI
memory 2x SODIMM DDR4, MAX 32GB
storage 1x M.2 B/M-Key 2280, SATA 3.0
External I/O display 1x DP, MAX 4096 x 2160@60Hz;
1x HDMI, MAX 4096 x 2160@60Hz
Ethernet 2x LAN, Intel® I210;
1x LAN, Intel® I226
COM 1x RS-232/485; 1x RS-232
USB 2x USB3.0; 2x USB2.0
Other REMOTE Support remote switching, integrated in the power supply part
RESET Support one-key system restoration by long-pressing
M.2 1x M.2 E-Key 2230, Support Wi-Fi;
1x M.2 B-Key 3052, Support 4G/5G
  SIM 1x Nano SIM
UPS /
System OS Windows 10 IoT LTSC, Linux
Power supply input voltage 24V DC IN, 4PIN Phoenix
power MAX 60W
Mechanical parameters installation Wall-mounted installation (rail optional)
dimensions 172 x 125 x 50mm (LxWxH)
net weight 1.2 kg
Environmental parameters operating temperature 0°C~60°C, with an air flow of 0.7 meters per second
storage temperature -25°C~70°C, 60°C @ 95% (non-condensing)
relative humidity 10 ~ 95% @ 40°C (non-condensing)
EMC CE, FCC Class B
