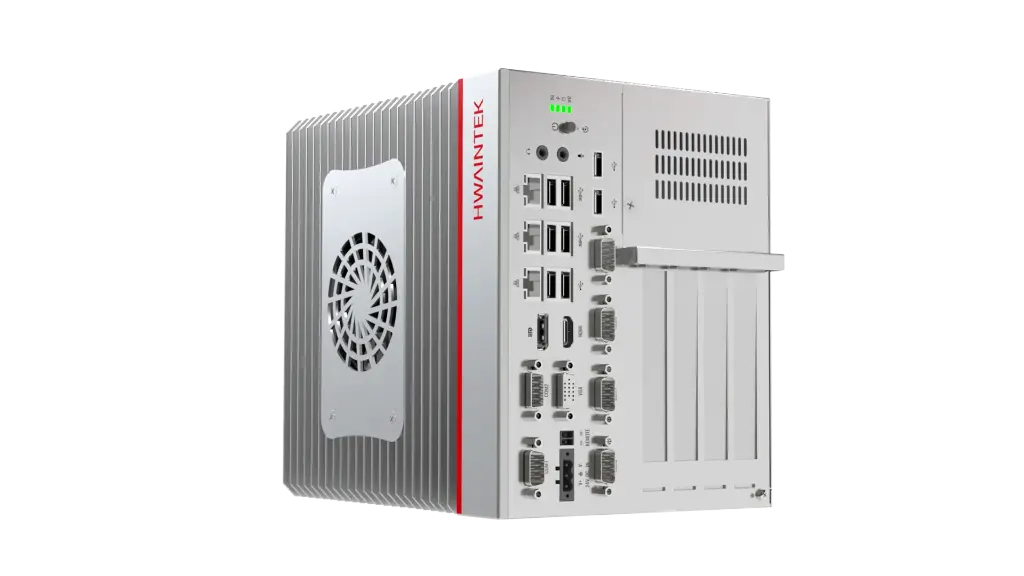

HC8014

https://www.visnal-imaging.com/web/image/product.template/104/image_1920?unique=1acd649
  • Intel® 12-14th Gen Core™ Processors
  • 1xDP, 1xHDMI, 1xVGA
  • 2x DDR5 SO-DIMM , Max 128GB
  • 3x Gigabit LAN(2x Intel i210 and 1x Intel i219)
  • 1x RS-232/422/485, 3x RS-232/485, 2x RS-232
  • 4x USB3.2, 4x USB2.0 Support 4G/5G, Wi-Fi expansion
  • 1x PCIe 5.0 x16, 1x PCIe 4.0 x4(x2 signal), 2x PCI slot

6,999.00 zł 6999.0 PLN 6,999.00 zł Tax Excluded

Not Available For Sale

  • CPU
  • RAM
  • SSD
  • SSD

This combination does not exist.

This content will be shared across all product pages.

Contact Us

Terms and Conditions
Leadtime: Contact us  [email protected]

Product Parameters

System Parameters CPU Intel® 12th-14th Gen Core™ i3-12100 / i5-12400 / i7-12700 processors
Chipset H610
BIOS AMI 128Mbit SPI Flash
Memory 2x SO-DIMM DDR5, MAX 128GB
Storage 1x M.2 M-Key 2280, SATA 3.0
External I/O Display 1x DP, MAX 4096 × 2304 @ 60Hz
1x HDMI, MAX 4096 × 2160 @ 30Hz
1x VGA, MAX 1920 × 1200 @ 60Hz
Ethernet 1x LAN, Intel® I219
2x LAN, Intel® I210
COM 1x RS-232/422/485; 3x RS-232/485; 2x RS-232
USB 4x USB 3.2; 4x USB 2.0
Audio 1x Line-out, 1x Mic-in
Other REMOTE Support remote switch
RESET Support long-press restart
Internal Expansion USB 1x USB 2.0, Type-A
M.2 1x M.2 E-Key 2230, support Wi-Fi (PCIe); 1x M.2 B-Key 3042, support 4G
SIM 1x Nano SIM
PCIe 1x PCIe 5.0 x16; 1x PCIe 4.0 x4 (x2 signal)
PCI 2x PCI slot
System OS Windows 10/11, CentOS 8, Ubuntu 20.04/22.04
Power supply Input voltage DC 24V
Power consumption 240W
Mechanical parameters Installation Wall-mounted installation
Dimensions 220 × 226 × 176 mm (LxWxH)
Net weight 4.3 kg
Environmental Parameters Operating temperature 0 ~ 50°C
Storage temperature -40°C ~ 85°C
Relative humidity 10 ~ 95% @ 40°C (non-condensing)
EMC CE, FCC Class B
