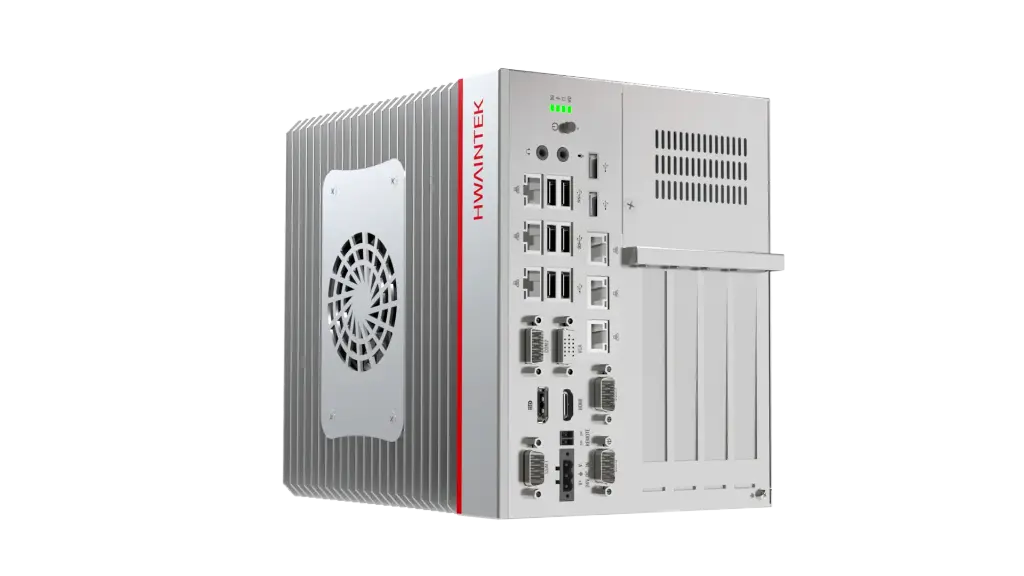

HC7224

https://www.visnal-imaging.com/web/image/product.template/71/image_1920?unique=ff6556c
  • Intell® 10th Generation Processors with LGA1200
  • 1xDP，1xHDMI，1xVGA
  • 2 x DDR4 S0-DIMM sockets support up to 64GB memory
  • 6 x Gigabit LAN(5 x Intel i210-AT and 1x Intel i219-LM)
  • 1x RS-232/485，3x RS-232
  • 4x USB3.0,4x USB2.0
  • Support UPS,4G/5G,Wi-Fi expansion
  • 1x PCIe 3.0 x16 slot, lx PCIe 3.0x4(x2 signal) ,2 PCI expansion slots
  • Compact and Rugged design

6,249.00 zł 6249.0 PLN 6,249.00 zł Tax Excluded

Not Available For Sale

  • CPU
  • RAM
  • SSD
  • SSD

This combination does not exist.

This content will be shared across all product pages.

Contact Us

Terms and Conditions
Leadtime: Contact us  [email protected]

Product Parameters

System Parameters CPU Intel® Core™ i3-10105 / i5-10400 / i7-10700
Chipset H420E / H470
BIOS AMI 128Mbit UEFI
Memory 2x SODIMM DDR4, MAX 64GB
Storage 2x M.2 M-Key 2280, SATA 3.0; 2x SATA
External I/O Display 1x DP, MAX 4096 × 2304 @ 60Hz
1x HDMI, MAX 4096 × 2160 @ 30Hz
1x VGA, MAX 1920 × 1080 @ 60Hz
Ethernet 1x LAN, Intel® I219LM
5x LAN, Intel® I210AT
COM 3x RS-232; 1x RS-485
USB 4x USB 3.0; 4x USB 2.0
Audio 1x Line-out, 1x Mic-in, Realtek ALC662
Other REMOTE 2-pin connector with remote switching capability
RESET Support long-press restart
Internal Expansion USB 1x USB 2.0, Type-A
M.2 1x M.2 E-Key 2230, support Wi-Fi
1x M.2 B-Key 3052, support 4G/5G
SIM 1x Micro SIM
PCIe 1x PCIe x16 (3.0); 1x PCIe x4 (3.0, x2 signal)
PCI 2x PCI
System OS Windows 10 IoT LTSC, Linux
Power supply Input voltage 24V DC IN, 3PIN Phoenix
Power consumption MAX 180W
Mechanical parameters Installation Wall-mounted installation

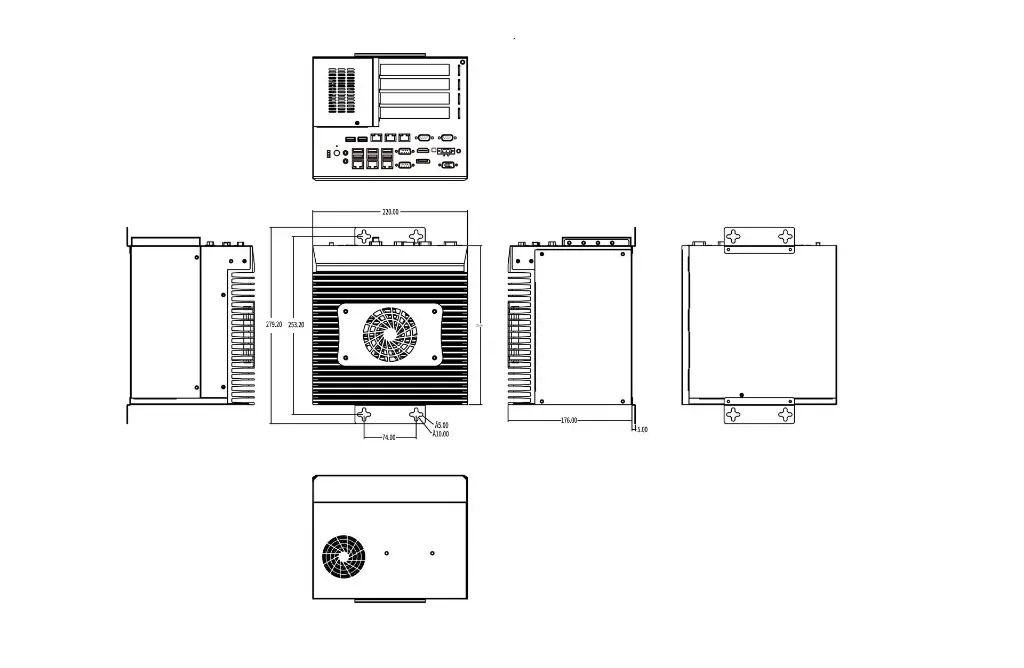

Dimensions 226 × 220 × 176 mm
Net weight 4 kg
Environmental Parameters Operating temperature 0 ~ 60°C, with 0.7 m/s airflow
Storage temperature -25°C ~ 70°C, 60°C @ 95% (non-condensing)
Relative humidity 10 ~ 95% @ 40°C (non-condensing)
EMC CE, FCC Class B
