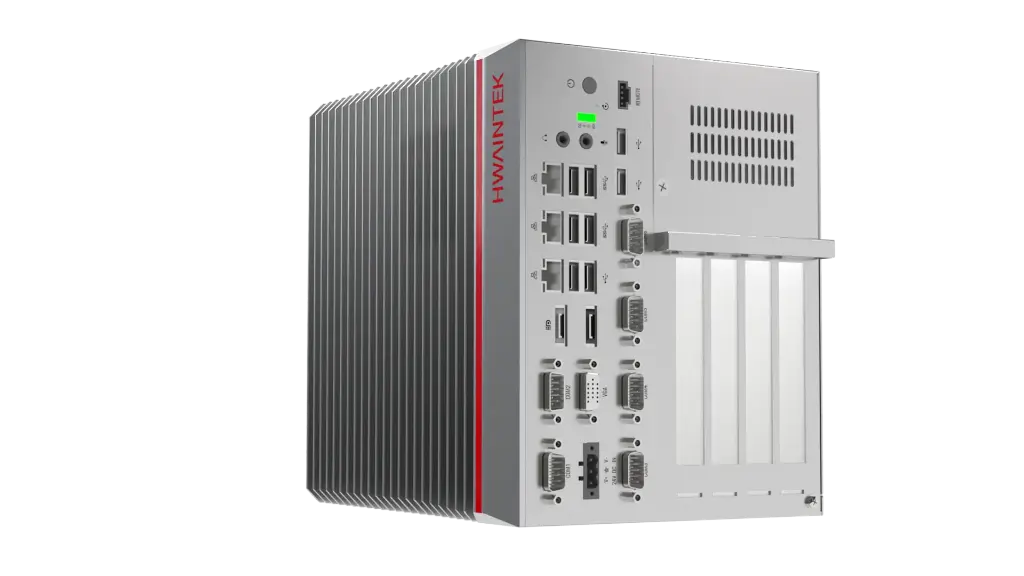

HC6114

HC6114

https://www.visnal-imaging.com/web/image/product.template/66/image_1920?unique=00bcdc3
  • Intel® 6th/7th/8th/9th Gen Processors with LGA1151
  • Support for 2 independent displays via Dual DP and one VGA ports with resolution up to 4K UHD
  • 2 x DDR4 SO-DIMM sockets support up to 32 GB memory
  • 1 x PCIe Gen3 x16 slot, 1 x PCIe Gen2 x2 slot, 2 x PCI slots
  • 3 x Gigabit LAN (2 x Intel i210-AT, 1 x i219-LM)
  • 8 x USB ports and 1 x internal USB 2.0 Type-A connector
  • 3 x RS485/232, 3 x RS232
  • Compact and Rugged design

5,299.00 zł 5299.0 PLN 5,299.00 zł Tax Excluded

Not Available For Sale

  • CPU
  • RAM
  • SSD
  • SSD

This combination does not exist.

This content will be shared across all product pages.

Contact Us

Terms and Conditions
Leadtime: Contact us  [email protected]

Product Parameters

System Parameters CPU Intel® Core™ i5-6400 / i5-8400 / i5-9400 / i7-6700 / i7-8700 / i7-9700
Chipset H110
BIOS AMI 64Mbit UEFI
Memory 2x SODIMM DDR4, MAX 32GB
Storage 1x M.2 M-Key 2280, SATA 3.0; 3x SATA
External I/O Display 2x DP, MAX 4096 × 2304 @ 60Hz
1x VGA, MAX 1920 × 1080 @ 60Hz
DP + DP / DP + VGA independent dual display
Ethernet 1x LAN, Intel® I219LM
2x LAN, Intel® I210AT
COM 3x RS-232; 3x RS-485
USB 4x USB 3.0; 4x USB 2.0
Audio 1x Line-out, 1x Mic-in, Realtek ALC662
Other REMOTE 4-pin connector supporting remote switching and indicator lights
RESET Support BIOS reset by long-pressing the button during shutdown
Internal Expansion USB 1x USB 2.0, Type-A
miniPCIe 1x miniPCIe, support WLAN/WWAN
SIM 1x USIM, support 3G/4G
PCIe 1x PCIe x16 (3.0); 1x PCIe x4 (2.0, x2 signal)
PCI 2x PCI
System OS Windows 10 IoT LTSC, Linux
Power supply Input voltage 24V DC IN, 3PIN Phoenix
Power consumption MAX 120W
Mechanical parameters Installation Wall-mounted installation
Dimensions 220 × 226 × 176 mm
Net weight 4.0 kg
Environmental Parameters Operating temperature 0 ~ 60°C, with an airflow of 0.7 m/s
Storage temperature -40°C ~ 85°C, 60°C @ 95% (non-condensing)
Relative humidity 10 ~ 95% @ 40°C (non-condensing)
EMC CE, FCC Class B
