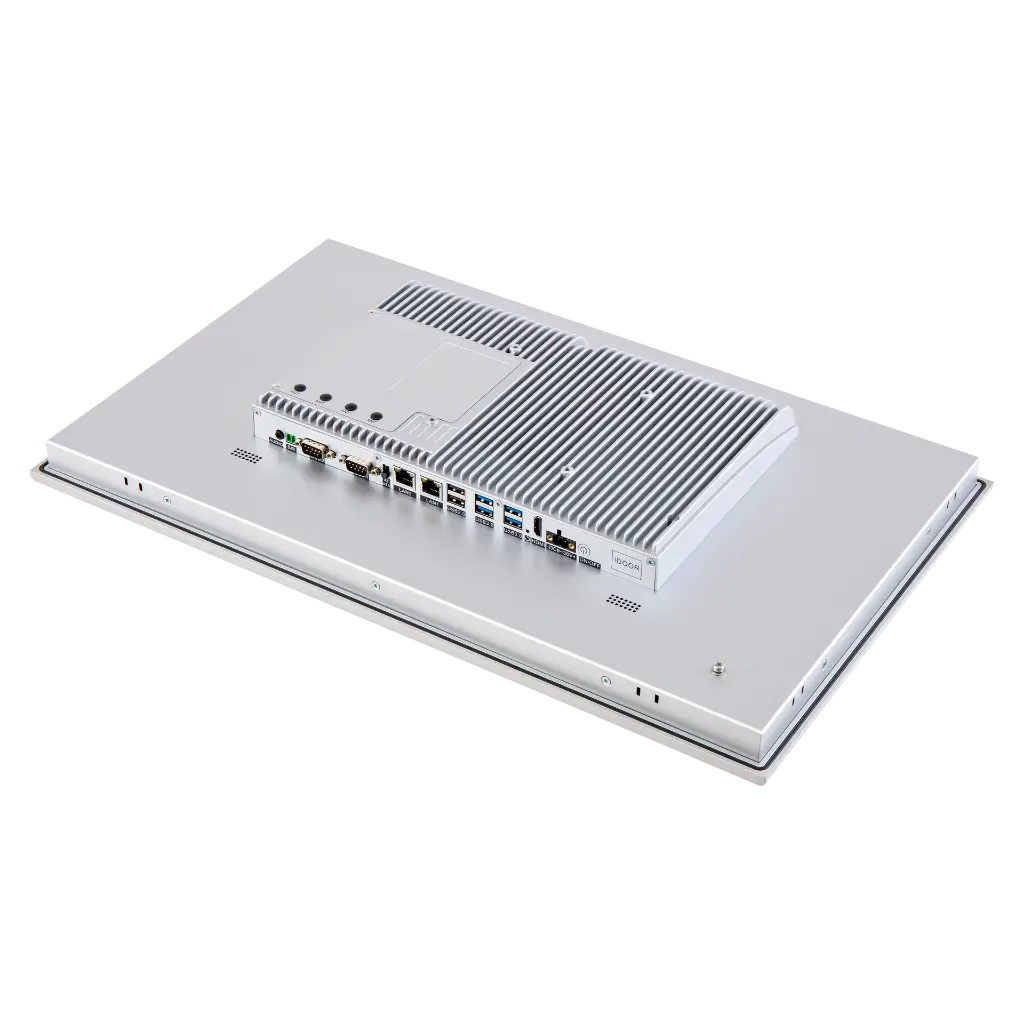

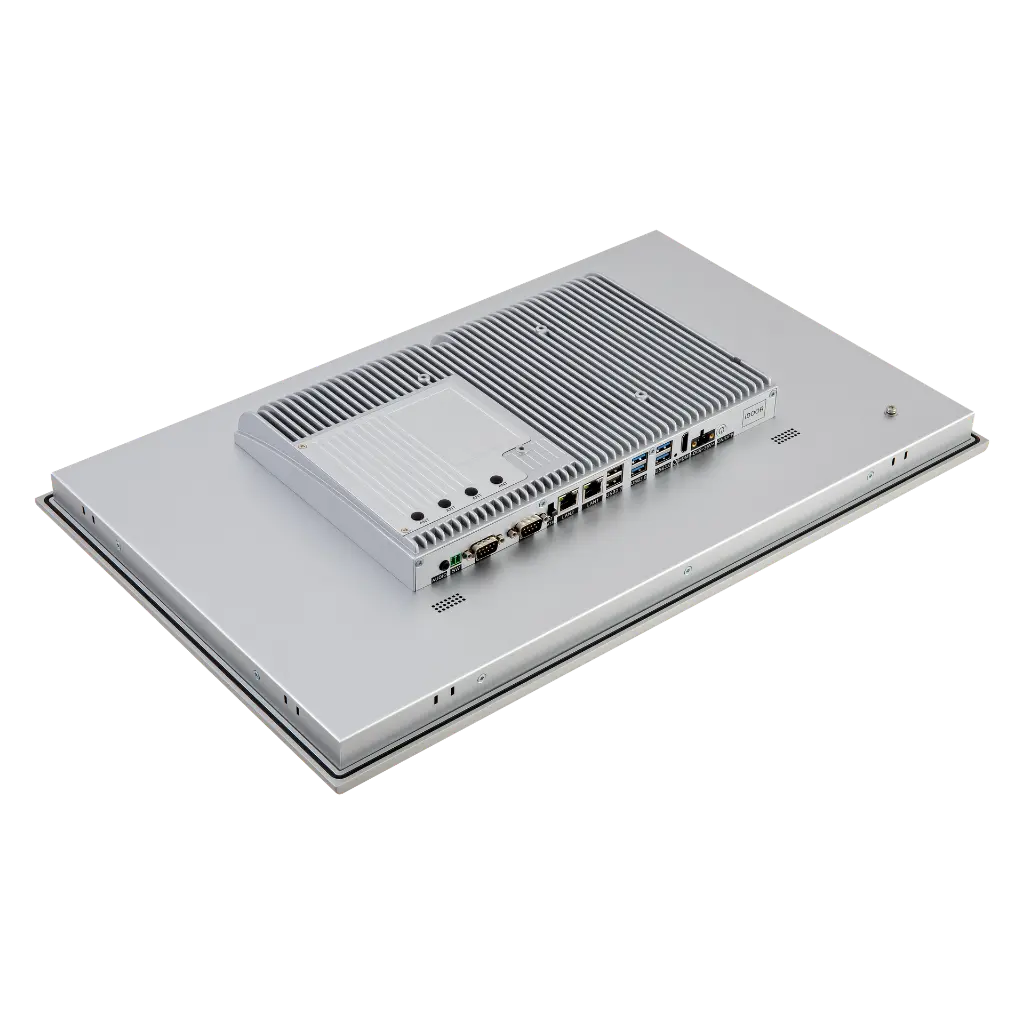

27-inch Fanless Industrial Panel PC - HPM132-AC27M

https://www.visnal-imaging.com/web/image/product.template/158/image_1920?unique=5b57d78
The HPM132-AC27M is a large-format 27-inch fanless industrial panel PC for HMI, machine control, factory automation, and equipment monitoring. It combines an IP65-rated front panel, PCAP multi-touch, configurable Intel processing, HDMI dual-display support, wide-range DC input, and flexible wired/wireless expansion in an aluminum alloy enclosure.

4,699.00 zł 4699.0 PLN 4,699.00 zł Tax Excluded

Not Available For Sale

  • Touch panel type
  • Size (inches)
  • CPU
  • RAM
  • SSD

This combination does not exist.

This content will be shared across all product pages.

Contact Us
Touch panel type: Capacitive
Size (inches): 23.8"

Terms and Conditions
Leadtime: Contact us  [email protected]

Specifications

System Model HPM132-AC27M
Processor *1 Intel® J6412, N97 & 4th~12th Gen U-Series Core™ i3/i5/i7
Memory *2 The memory type is determined by the CPU model
Ethernet 2 x GbE RJ45 Intel i210-AT

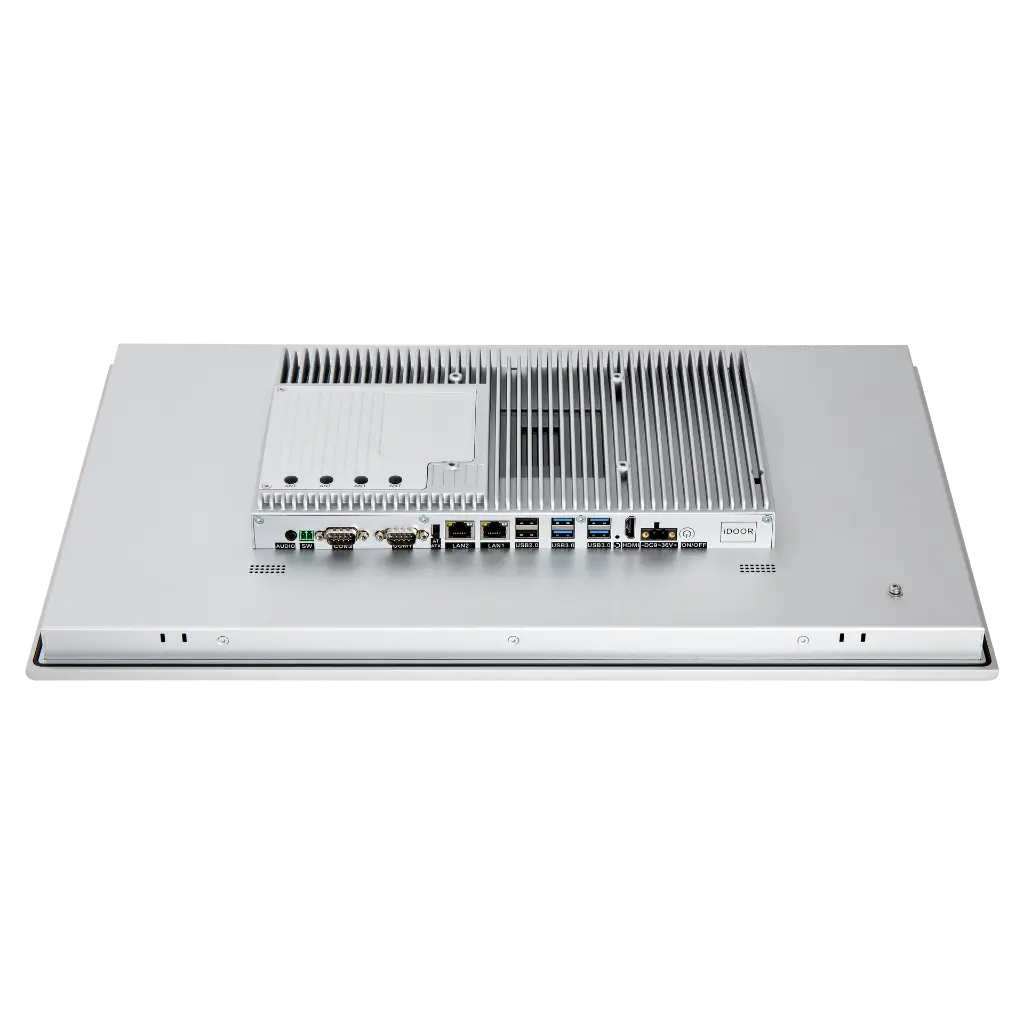

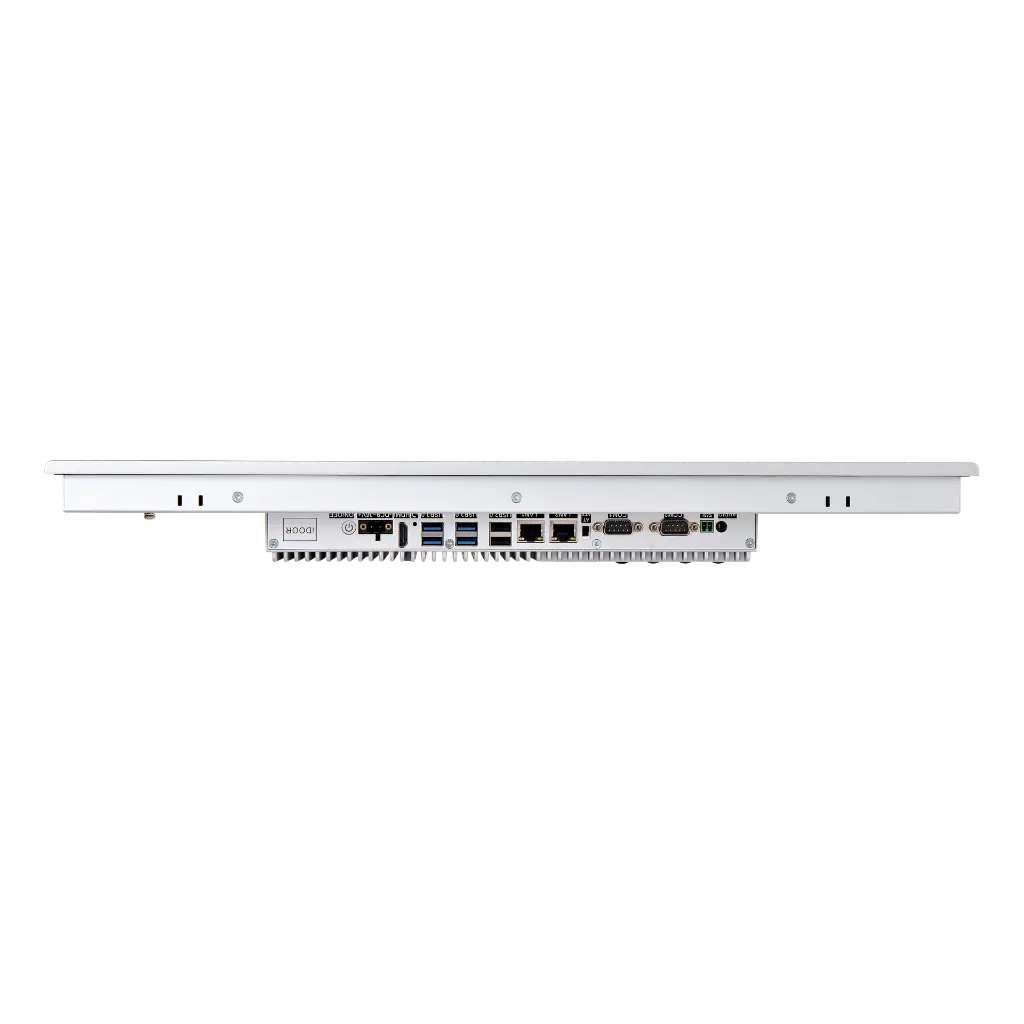

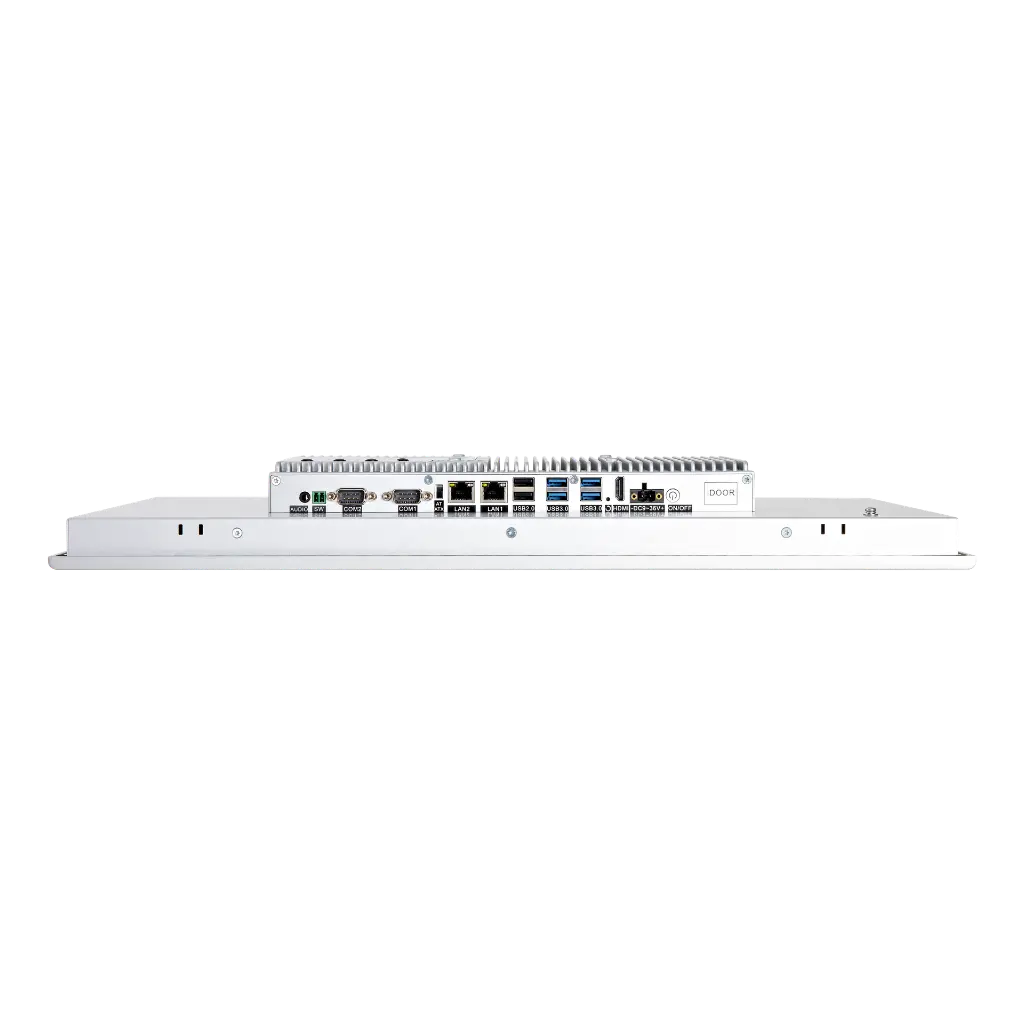

I/O Port 4 x USB3.0, 2 x USB2.0
2 x DB-9 COM1 & COM2, RS-232/485
1 x Audio Line-out/Mic-in
2 x 8Ω 1W Audio AMP out (Optional)
1 x Remote switch Phoenix
1 x AT/ATX Switch
1 x HDMI
1 x IDOOR (2xLAN / 4xCOM / 14xGPIO Optional)
Storage *3 1 x M.2 2280 SSD (SATA/NVMe);
1 x SATA (2.5" SATA)
Expansion Slot Mini-PCIe x 1 full size with SIM Card for 3G/4G;
M.2 Key E x 1 for WIFI/BT;
M.2 Key B x 1 for 5G
Watchdog timer 255 Levels
OS Support Windows® 10/11, Linux

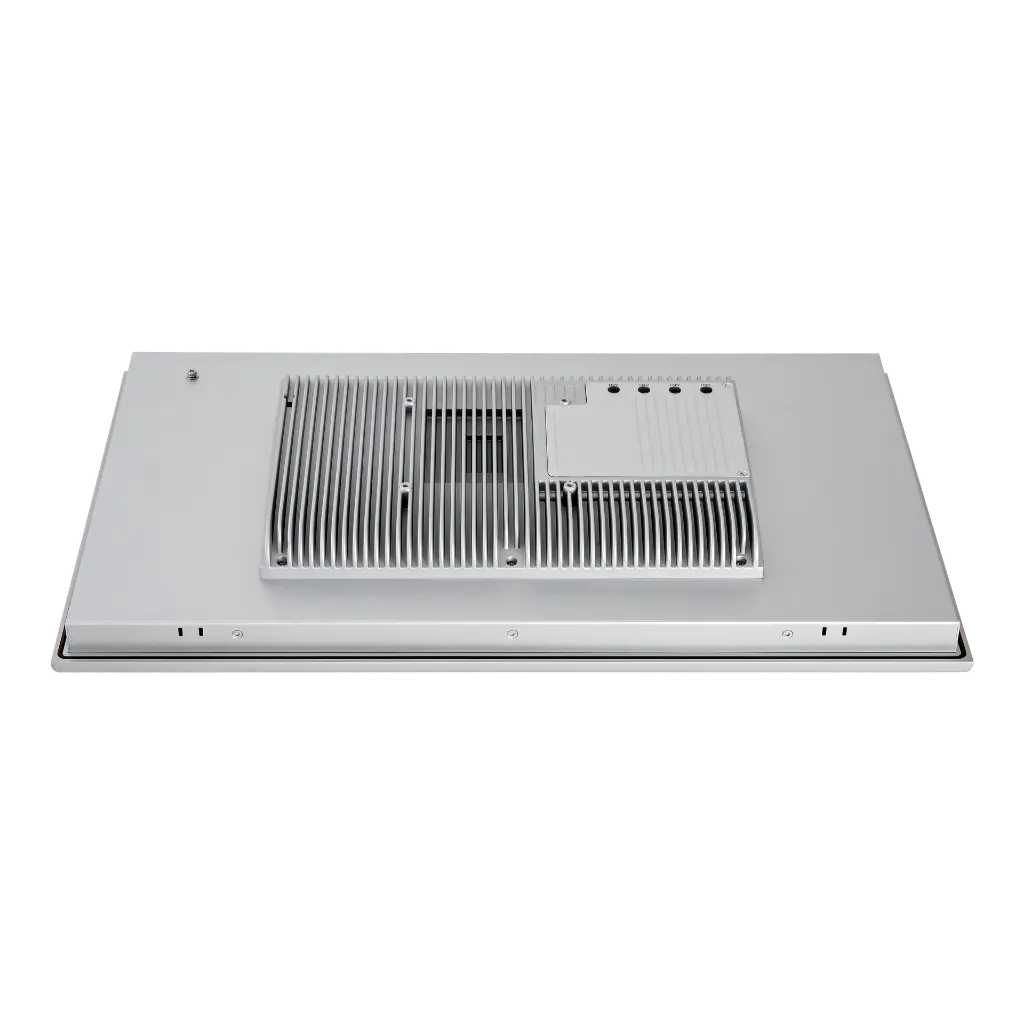

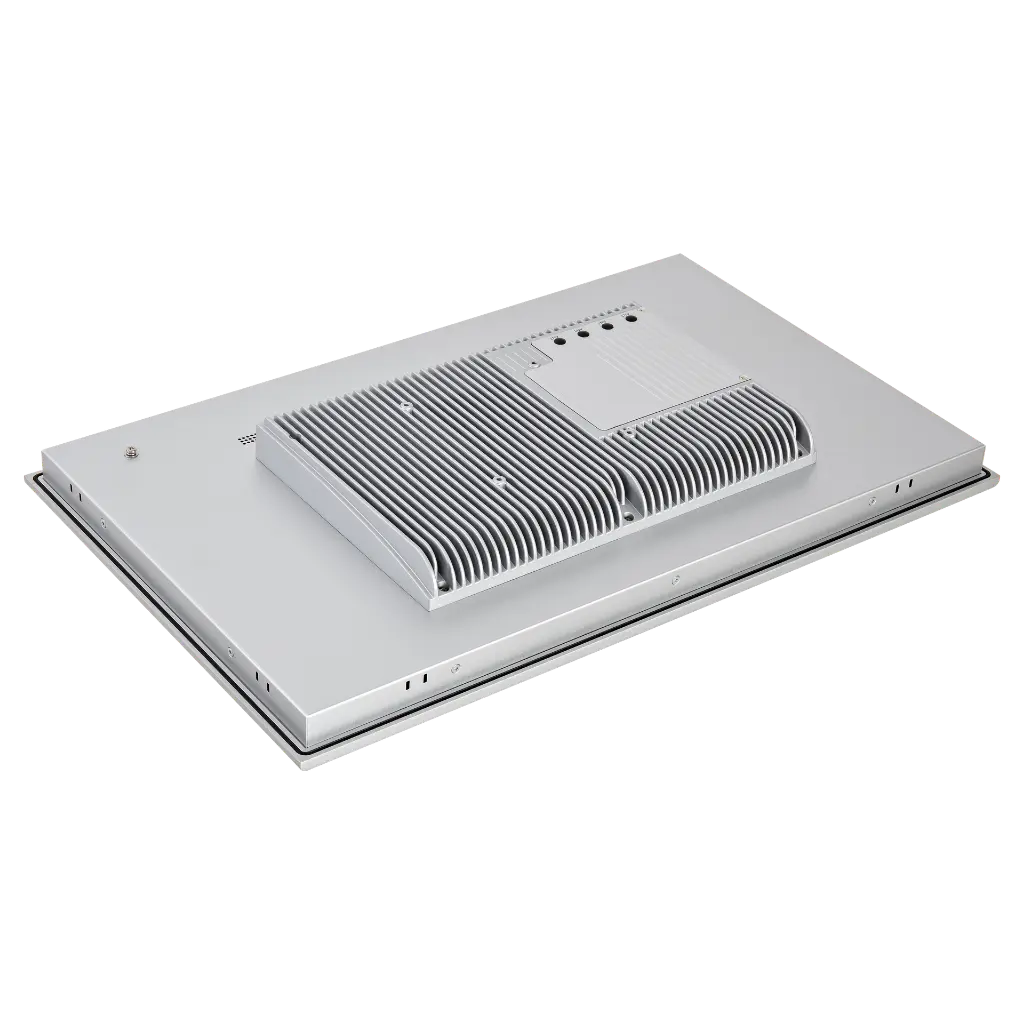

Mechanical Construction Aluminum Design

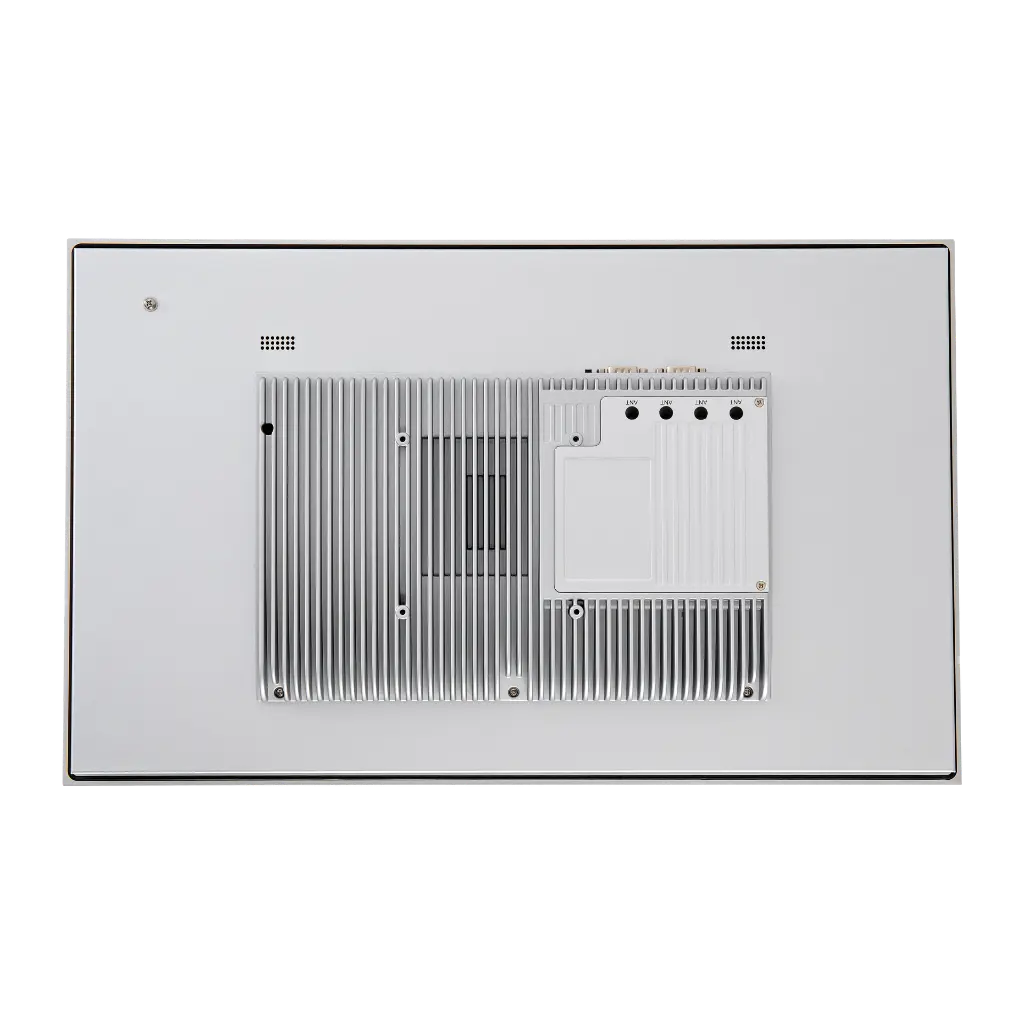

Mounting VESA 100 / Panel Mount
Dimension 659.0 x 401.2 x 62.0 mm
Gross Weight TBD
Environmental Operating Temperature 0°C ~ 50°C
Storage Temperature -20°C ~ 60°C
Storage Humidity 10 ~ 90% @ 30°C, non-condensing
Power Supply DC input DC 9 ~ 36V 2-pin Phoenix Connector

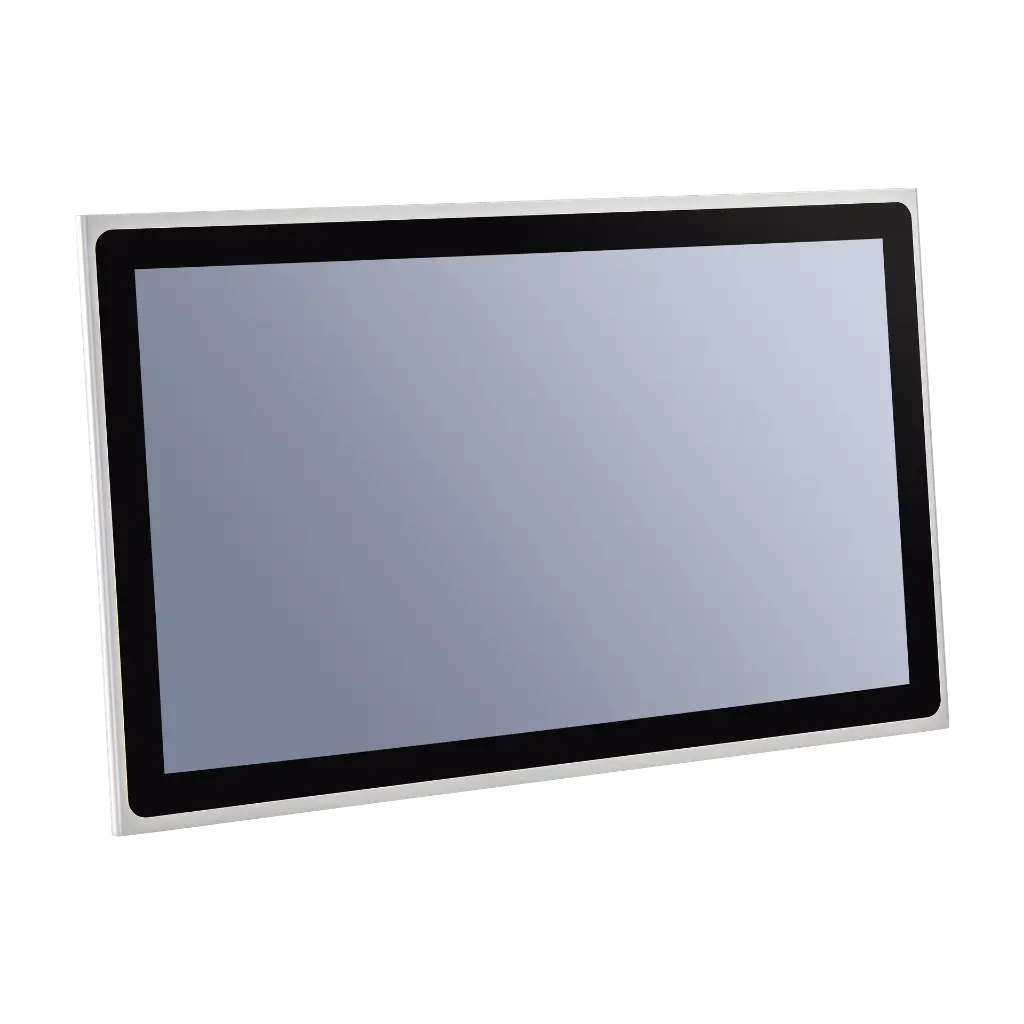

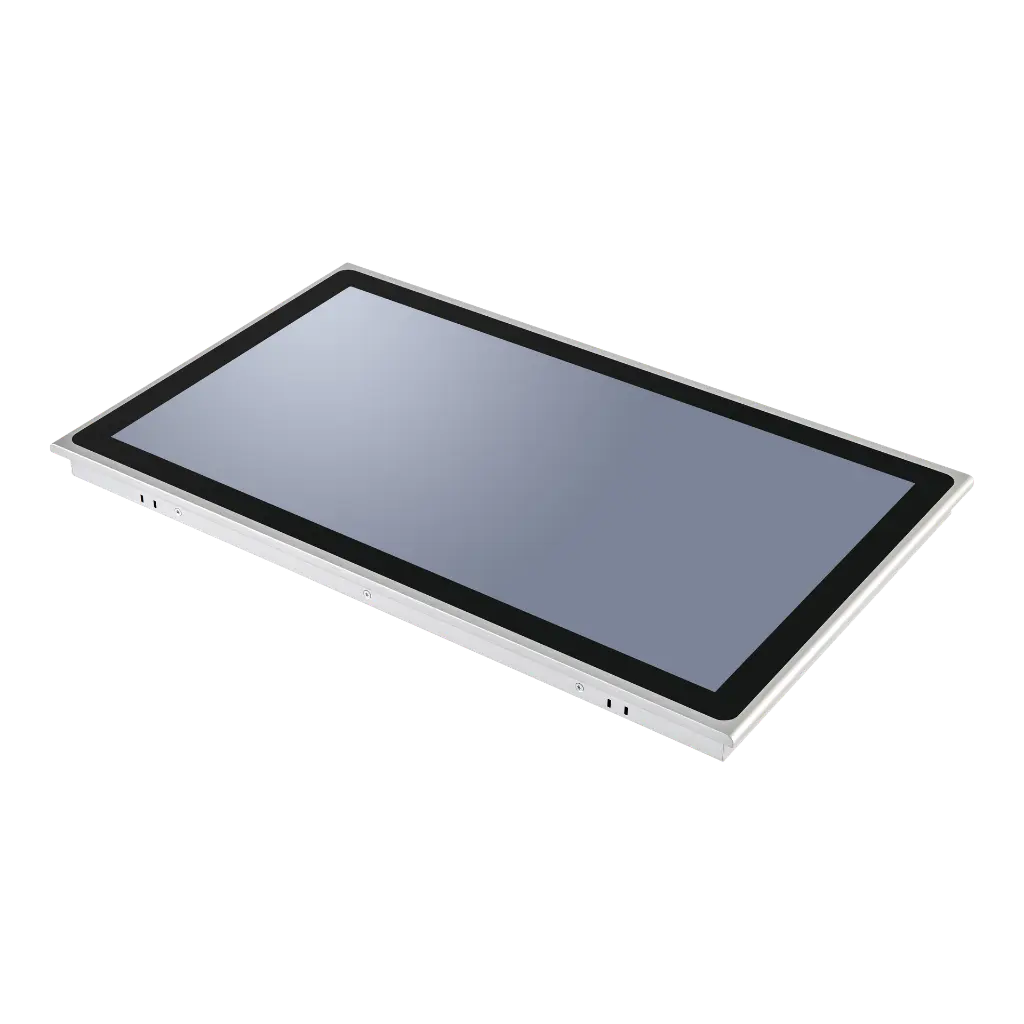

LCD Display Type 27" TFT-LCD
Resolution 1920 x 1080
Max. Colors 16.7M
Luminance 300 cd/m²
Viewing Angle (CR >= 10) -89 ~ 89° (H), -89 ~ 89° (V)
Back Light LED
Back Light MTBF (Hours) 30,000 (Min.)
Touchscreen Type P-CAP Multi Touch
Light Transmission >85%
Life Time 7H
