19-inch Fanless Industrial Panel PC - HPM132-AC/AR19M

https://www.visnal-imaging.com/web/image/product.template/165/image_1920?unique=da2d48f
The HPM132-AC/AR19M is a industrial 19-inch fanless industrial panel PC for HMI, machine control, factory automation, and equipment monitoring. It combines an IP65-rated front panel, PCAP or flat 5-wire resistive touch, configurable Intel processing, HDMI dual-display support, wide-range DC input, and flexible wired/wireless expansion in an aluminum alloy enclosure.

  • Supports Intel® J6412,N97 & 4th ~ 12th GenU-SeriesCore i3/i5/i7 processors
  • LCD+HDMI dual displays
  • IP65-rated front panel
  • Fanless design with aluminum alloy enclosure
  • 9~36V Wide Range DC input

4,249.00 zł 4249.0 PLN 4,249.00 zł Tax Excluded

Not Available For Sale

  • Touch panel type
  • Size (inches)
  • CPU
  • RAM
  • SSD

This combination does not exist.

This content will be shared across all product pages.

Contact Us
Size (inches): 19"

Terms and Conditions
Leadtime: Contact us  [email protected]

Scalable Intel Platform

Configure the HPM132-AC116M around Intel J6412, Intel N97, or 4th to 12th Gen U-Series Core i3/i5/i7 processors, giving integrators a practical path from efficient HMI control to higher-performance edge workloads.

Built for Dual-Display HMI Workflows

The 11.6-inch TFT-LCD panel delivers 1920 x 1080 resolution at 220 cd/m2, while HDMI output supports a second display for dashboards, mirrored operator screens, or local service views.

IP65-Rated Front Panel with Industrial Touch

An IP65-rated front panel helps protect the operator interface from dust and water exposure. The touch configuration is PCAP multi-touch with greater than 85% light transmission and 7H surface hardness, matching the unit to the way operators actually work.

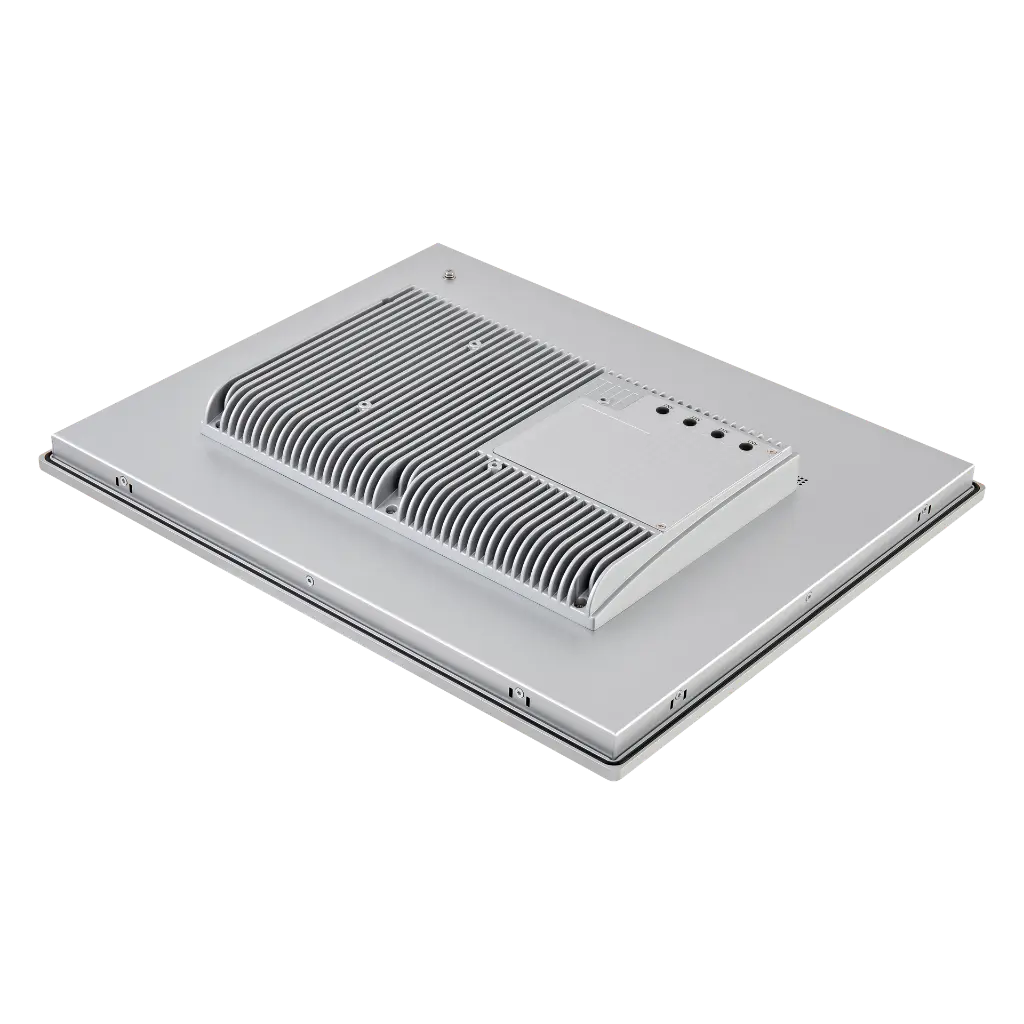

Fanless Aluminum Reliability

The fanless aluminum alloy enclosure reduces moving parts and helps keep maintenance low in industrial environments. This model is specified for operation from 0 to 60 degC.

Specifications

System Model HPM132-AC/AR19M
Processor Intel® J6412, N97 & 4th~12th Gen U-Series Core™ i3/i5/i7
Memory Memory type is determined by the CPU model
Ethernet 2x GbE RJ45, Intel® i210-AT

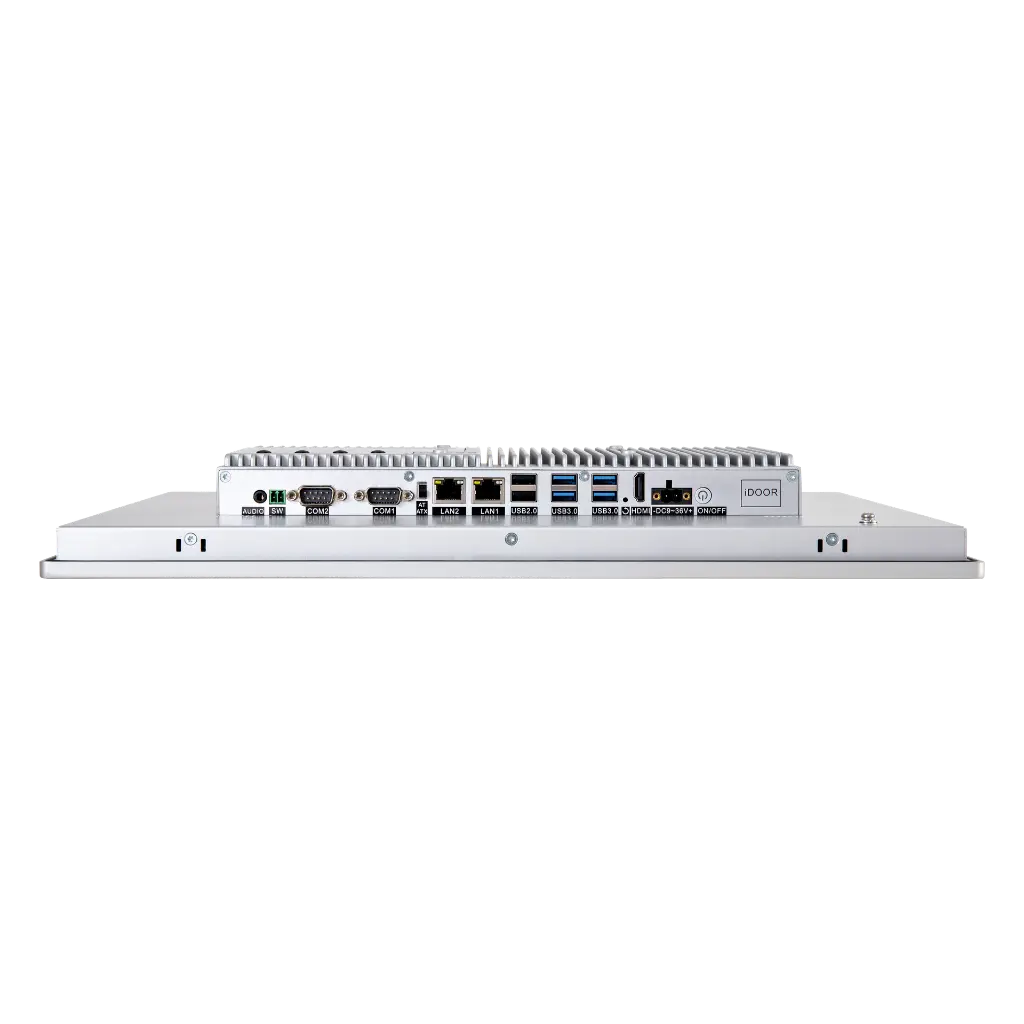

I/O Port 4x USB 3.0; 2x USB 2.0
2x DB-9 COM1 & COM2, RS-232/485
1x Audio Line-out / Mic-in
2x 8Ω 1W Audio AMP out, optional
1x Remote switch Phoenix
1x AT/ATX switch
1x HDMI
1x IDOOR, optional: 2x LAN / 4x COM / 14x GPIO
Storage 1x M.2 2280 SSD, SATA/NVMe
1x SATA, 2.5" SATA
Expansion Slot 1x full-size Mini-PCIe with SIM card for 3G/4G
1x M.2 Key E for Wi-Fi/BT
1x M.2 Key B for 5G
Watchdog Timer 255 levels
OS Support Windows® 10/11, Linux
Mechanical Construction Aluminum design
Mounting VESA 100 / Panel mount
Dimensions 440.0 × 364.0 × 56.7 mm
Gross Weight TBD
Environmental Operating Temperature 0°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Storage Humidity 10 ~ 90% @ 30°C, non-condensing
Power Supply DC Input DC 9 ~ 36V, 2-pin Phoenix connector
LCD Display Type 19" TFT-LCD
Resolution 1280 × 1024
Max. Colors 16.7M
Luminance 250 cd/m²
Viewing Angle
(CR >= 10)		 -89° ~ 89° (H), -89° ~ 89° (V)
Back Light LED
Back Light MTBF 30,000 h
Touchscreen Type Flat 5-wire resistive / P-CAP multi-touch
Light Transmission 78% / >85%
Life Time / Surface Hardness >5 million activations / 7H
