HM315

Intel® Alder Lake-N N97/I3-N305
Single-channel DDR5-4800, with a maximum memory capacity of 16GB
5x LAN (4x Intel i210；1x Realtek RTL8111H) 1x RS-232/422/485；1x RS-232；2x RS-485
3x USB 3.0；1x USB 2.0
8DI，8DO（10K）；8DI，8DO（200K）
Support expansion of 4G/5G and Wi-Fi 6 wireless communication modules
DC9-36V, support optional UPS module expansion

Ta kombinacja nie istnieje.

Więcej informacji

Ta treść będzie udostępniona na wszystkich stronach produktów.

Product Parameters

System Parameters	CPU	Intel® Alder Lake-N series N97 / i3-N305
	Chipsets	Intel® SoC Integrated
	BIOS	AMI 128Mbit SPI Flash
	Memory	1x SODIMM DDR5, MAX 16GB
	Storage	1x M.2 M-Key 2280, SATA 3.0
External I/O	Display	1x DP, MAX 4096 × 2304 @ 60Hz 1x HDMI, MAX 4K/2K @ 60Hz
	LAN	4x LAN, Intel® i210 GbE 1x LAN, Realtek RTL8111H GbE
	COM	1x RS-232/422/485, 1x RS-232, 2x RS-485
	USB	3x USB 3.0; 1x USB 2.0
	DIO	8x DI, 8x DO (10K); 8x DI, 8x DO (200K)
	Power	1x Power Switch Button
Others	REMOTE	Support remote switching, integrated in the power supply part
Others	RESET	Support BIOS reset by long-pressing the power button when shutdown
Internal Expansion	USB	1x Internal USB 2.0 (pin), 1x USB 2.0 Type-A
	M.2	1x M.2 3042/3052, support 4G/5G; 1x M.2 2230, support Wi-Fi
	SIM	1x Nano SIM
System	OS	Windows 10 IoT LTSC, Linux
Power supply	Input voltage	24V DC IN, 4PIN Phoenix
Power supply	Power	MAX 60W
Mechanical parameters	Installation	Wall-mounted installation (rail optional)

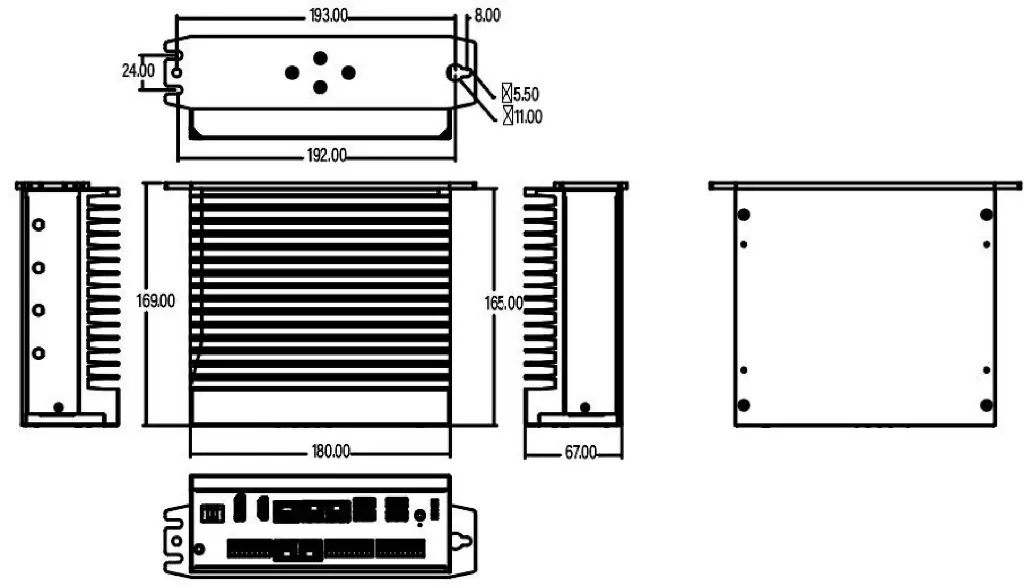

	Dimensions	180 × 165 × 67 mm
	Net weight	2 kg
Environmental Parameters	Operating temperature	0 ~ 60°C, with an air flow of 0.7 meters per second
	Storage temperature	-40°C ~ 85°C, 60°C @ 95% (non-condensing)
	Relative humidity	10 ~ 95% @ 40°C (non-condensing)
	EMC	CE, FCC Class B
