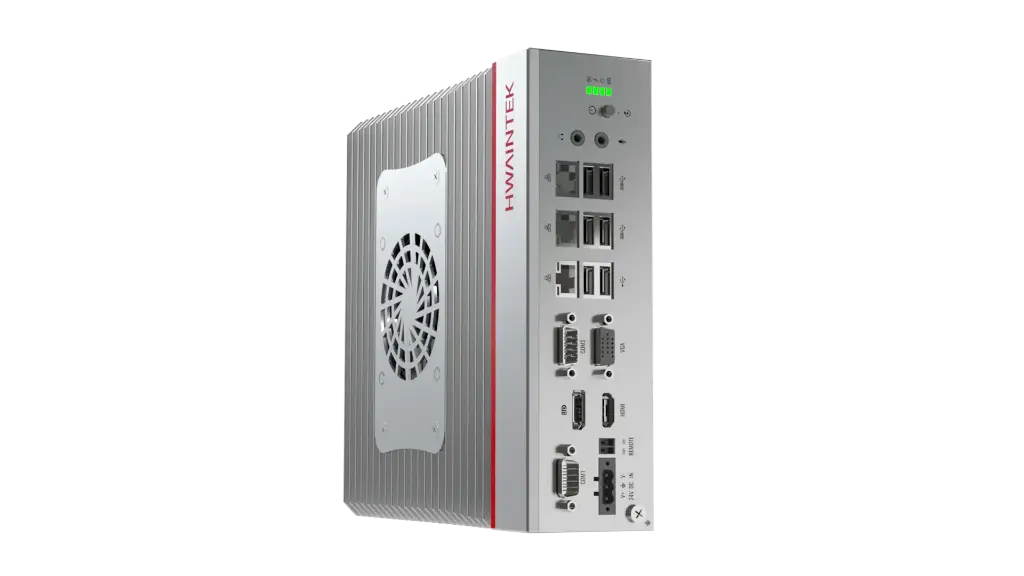

HC7200

https://www.visnal-imaging.com/web/image/product.template/69/image_1920?unique=29594c0
  • Intel® 10th Generation Processors with LGA1200
  • 1 x DP, 1 x HDMI, 1 x VGA
  • 2 x DDR4 SO-DIMM sockets support up to 64GB memory
  • 3 x Gigabit LAN(2 x Intel i210-AT and 1 x Intel i219-LM)
  • 1 x RS-485, 1 x RS-232
  • Compact and Rugged design

5199,00 zł 5199.0 PLN 5199,00 zł Netto

Not Available For Sale

  • CPU
  • RAM
  • SSD
  • SSD

Ta kombinacja nie istnieje.

Ta treść będzie udostępniona na wszystkich stronach produktów.

Skontaktuj się z nami

Warunki i postanowienia
Leadtime: Contact us  [email protected]

Product Parameters

System Parameters CPU Intel® Core™ i3-10105 / i5-10400 / i7-10700
Chipset H420E / H470
BIOS AMI 128Mbit UEFI
Memory 2x SODIMM DDR4, MAX 64GB
Storage 2x M.2 M-Key 2280, SATA 3.0
External I/O Display 1x DP, MAX 4096 × 2304 @ 60Hz
1x HDMI, MAX 4096 × 2160 @ 30Hz
1x VGA, MAX 1920 × 1080 @ 60Hz
Ethernet 1x LAN, Intel® I219LM
2x LAN, Intel® I210AT
COM 1x RS-232; 1x RS-232/485
USB 4x USB 3.0; 2x USB 2.0
Audio 1x Line-out, 1x Mic-in, Realtek ALC662
Other REMOTE 2-pin connector with remote switching capability
RESET Support long-press restart
Internal Expansion USB -
M.2 1x M.2 E-Key 2230, support Wi-Fi
1x M.2 B-Key 3052, support 4G/5G
SIM 1x Micro SIM
System OS Windows 10 IoT LTSC, Linux
Power supply Input voltage 24V DC IN, 3PIN Phoenix
Power consumption MAX 180W
Mechanical parameters Installation Wall-mounted installation
Dimensions 226 × 220 × 68 mm
Net weight 3.0 kg
Environmental Parameters Operating temperature 0 ~ 60°C, with 0.7 m/s airflow
Storage temperature -25°C ~ 70°C, 60°C @ 95% (non-condensing)
Relative humidity 10 ~ 95% @ 40°C (non-condensing)
EMC CE, FCC Class B
