  3. 10.1-inch Fanless Industrial Panel PC - HPM132-AC/AR101M
PLN

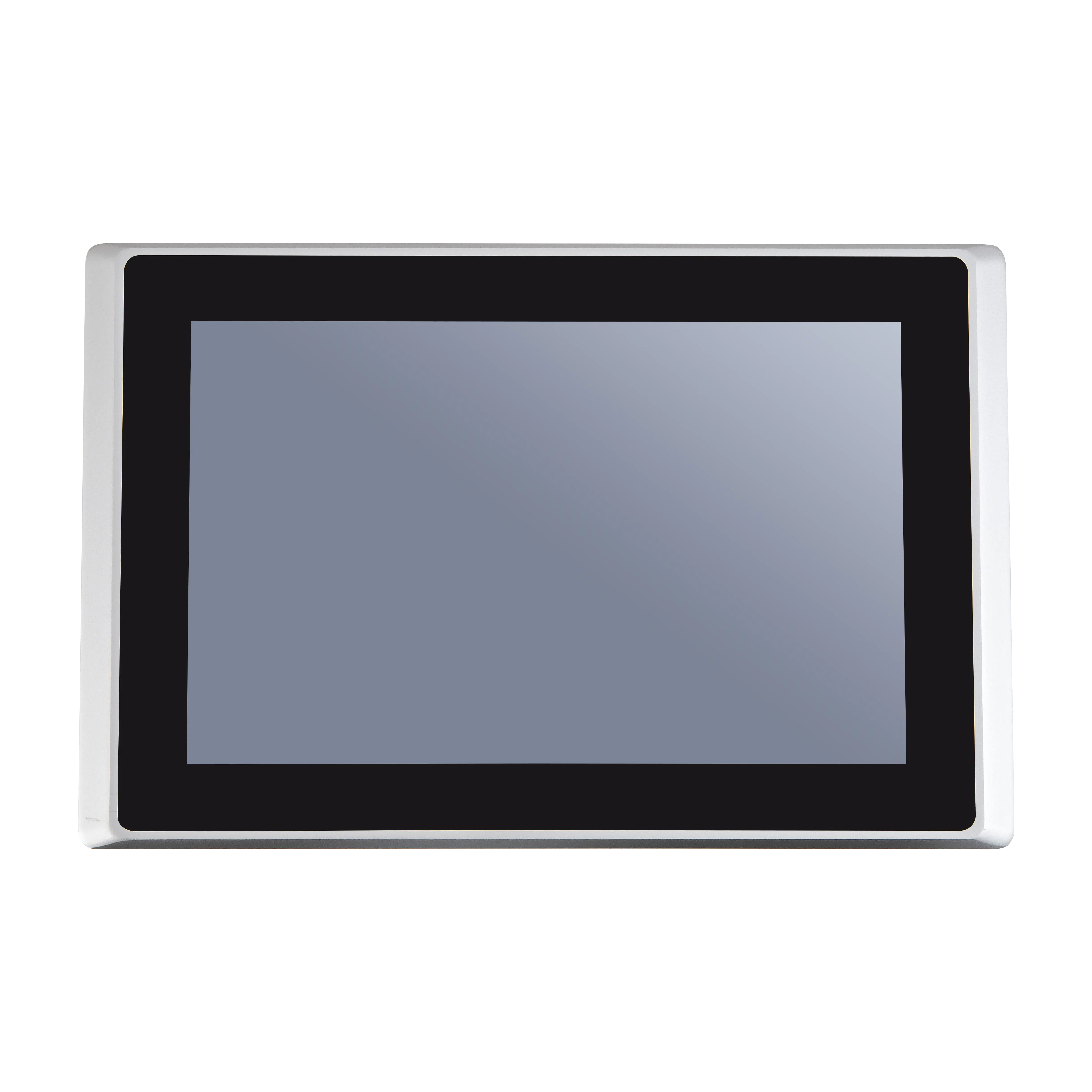

10.1-inch Fanless Industrial Panel PC - HPM132-AC/AR101M

https://www.visnal-imaging.com/web/image/product.template/159/image_1920?unique=a1bb3c8
The HPM132-AC/AR101M is a compact 10.1-inch fanless industrial panel PC for HMI, machine control, factory automation, and equipment monitoring. It combines an IP65-rated front panel, PCAP or flat 5-wire resistive touch, configurable Intel processing, HDMI dual-display support, wide-range DC input, and flexible wired/wireless expansion in an aluminum alloy enclosure.

  • Supports Intel® J6412,N97 & 4th ~ 12th Gen U-Series Core
  • i3/i5/i7 processors
  • LCD+HDMI dual displays
  • IP65-rated front panel
  • Fanless design with aluminum alloy enclosure
  • 9~36V Wide Range DC input

3599,00 zł 3599.0 PLN 3599,00 zł Netto

Not Available For Sale

  • Rodzaj ekranu dotykowego
  • Rozmiar (cale)
  • CPU
  • RAM
  • SSD

Ta kombinacja nie istnieje.

Ta treść będzie udostępniona na wszystkich stronach produktów.

Skontaktuj się z nami
Rozmiar (cale): 10.1"

Warunki i postanowienia
Leadtime: Contact us  [email protected]

Specifications

System Model HPM132-AC/AR101M
Processor *1 Intel® J6412, N97 & 4th~12th Gen U-Series Core™ i3/i5/i7
Memory *2 The memory type is determined by the CPU model
Ethernet 2 x GbE RJ45 Intel i210-AT
I/O Port 4 x USB3.0, 2 x USB2.0
2 x DB-9 COM1 & COM2, RS-232/485
1 x Audio Line-out/Mic-in
2 x 8Ω 1W Audio AMP out (Optional)
1 x Remote switch Phoenix
1 x AT/ATX Switch
1 x HDMI
Storage *3 1 x M.2 2280 SSD (SATA/NVMe);
1 x SATA (2.5" SATA)
Expansion Slot Mini-PCIe x 1 full size with SIM Card for 3G/4G;
M.2 Key E x 1 for WIFI/BT;
M.2 Key B x 1 for 5G
Watchdog timer 255 Levels
OS Support Windows® 10/11, Linux
Mechanical Construction Aluminum Design
Mounting VESA 100 / Panel Mount
Dimension 283.2 x 186.9 x 56.1 mm
Gross Weight TBD
Environmental Operating Temperature -20°C ~ 70°C
Storage Temperature -30°C ~ 70°C
Storage Humidity 10 ~ 90% @ 30°C, non-condensing
Power Supply DC input DC 9 ~ 36V 2-pin Phoenix Connector
LCD Display Type 10.1" TFT-LCD
Resolution 1280 x 800
Max. Colors 16.7M
Luminance 430 cd/m²
Viewing Angle (CR >= 10) -85 ~ 85° (H), -85 ~ 85° (V)
Back Light LED
Back Light MTBF (Hours) 34,000
Touchscreen Type Flat 5-wire Resistive P-CAP Multi Touch
Light Transmission 78% >85%
Life Time >5 million activations 7H
